3800 Kanomax Condensation Particle Counter

$7,990.00 -- Kanomax Handheld Condensation Particle Counter

Purchase 3800 Kanomax Condensation Particle Counter

Kanomax 3800 Condensation Particle Counter.  Accurately measure condensation nanoparticles.

3800 Particle Counter Data Sheet

 3800 Particle Counter User Manual

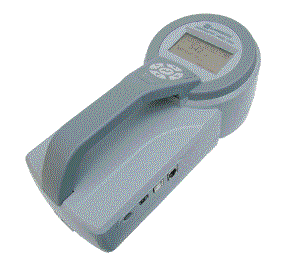

Kanomax 3800 Handheld Condensation Particle Counter


     The 3800 hand held condensation particle counter from Kanomax USA is the optimal screening tool for nano particles. Get accurate counts up to 100,000 particles/cm3  for particles ranging is size from 0.015 to 1�m.  The on-board data logger records up to 100,000 measurements and real-time data transfer to your PC is available with the USB interface and Windows 7 compatible software.

      The Kanomax 3800 condensation particle counter is light-weight and portable at only 3.3 lbs.  The unit is powered by AA batteries or 110-240 AC current.  The handy carry case neatly stores and protects the meter and all of the optional equipment.

      The 3800 comes complete with Operation Manual, Carrying Case, AC Adapter, Zero Filter, PC Communication Cable, Data Download Software (Windows) and calibration certificate.

      The Kanomax 3800 is the perfect tool IAQ investigations, occupational health control, gasket leak testing, engine exhaust testing and aerosol research.

IAQ and Nanoparticle Health Risk
     Airborne respirable particles in general, especially ultrafine or nano particles, cause lung damage, affecting asthma and other respiratory diseases.  Indoor airborne particulate numbers are on the rise due in part to ongoing efforts to improve building energy efficiency.  Gaps in the science of measuring ultrafine particles has left us with little understanding of the true nature of our exposure to particulate contaminates in the nano size range.

     Now, Kanomax USA offers a handheld condensation particle counter CPC Model 3800 to help accurately quantify concentrations of ultrafine particles and the associated exposures to building occupants.  The Kanomax 3800 can trace particle sizes as small as 0.015 to 1.0 micrometers. This handheld instrument is perfect for identifying nanoparticle sources, which offers more accurate data to IAQ investigation in order to prevent future human health risks.

Evaluating Exposures to Nanoparticle
      In Approaches to Safe Nanotechnology, NIOSH recommends direct-reading instruments and filter sampling with lab analysis to obtain particle number, size, and shape, degree of agglomeration, and mass concentration of elemental constituents in nanoparticles. Direct-reading instruments include both optical particle counters and condensation particle counters such as the Kanomax 3800.


Kanomac 3800 measuring nanoparticles in heavy manufacturing

Industrial hygiene

Kanomax 3880 condensation partlce counter measuring leaks in steam pipe

Leak detection

Kanomax 3880 condensation particle counter measuring nanoparticles in exhaust emissions

Exhaust emissions

Fatures of the 3800 Condensation Particulate Counter

  • Particle size range: 0.015 to 1�m
  • Measuring range: 0 to 100,000 particles/cm3
  • Sampling airflow: 0.7L/min
  • Data logging up to 100,000 measurements
  • Measuring Software included (for Windows)
  • USB interface for data transfer
  • Power supply: 6 x AA batteries or AC adapter Weight: 3.3lbs (1.5kg)






Particle Counter Accessories

  • 3800-01:  Spare AC adapter
  • 3800-02:  Spare zero filter
  • 3800-03:  Spare alcohol bottle
  • 3800-04:  Spare storage cap
  • 3800-05:  Spare alcohol cartridge
  • 3800-06:  Spare felt and wire mesh
  • 3800-07:  Spare com cable to PC
  • 3800-08:  Spare Carry Case
  • 3800-10:  Sampling probe with 1m tubing
  • 3800-11:  Printer cable for DPU-S245 printer
  • DPU-H245: Portable Thermal Printer TP-202L: Rolled Printer Paper (10 rolls)

             Order Below

 Remote sampling probe for Kanomax 3800 Condensation Particle Counter

NEW Remote Sampling Probe 3800-10



3800 Data Acquisition Software

Simultaneously receive data and display/graph in real time. Measurement data saved as text file for export to standard calculation software such as Microsoft Excel.

 Hardware Requirements

  • OS:       Windows 2000/XP
  • CPU:     Pentium-equivalent CPU or faster
  •  RAM:     64 MB or higher
  • HDD:     40 MB free hard-disk space
  • Others:  USB port, CD-ROM drive





Software for Kanomax 3800 condensation particle counter

3800 Data Logging Software

3800 Specifications

Measuring Particle Size

  0.015 to > 1um

Concentration Range

  0 to 100,000 particles/cm3

Counting Efficiency

  50nm: 100+/-20% (15nm: More than 50%)

Zero Count

  Less than 1 particle/ cm3

Flow Rate

  Aerosol Flow: 100cc/min

  Total Flow: 700cc/min

Alcohol Supply

Type

  100% reagent-grade isopropyl alcohol

Hours per Fill

  Approx. 5 hours at 23�C (73�F)

Absolute Pressure Sensor

  150 to 1150 hPa

Mode of Measurements

  Repeat / Program / Counter

Display

  Built-in LCD ( 128 x 64 dots)

Interface

  USB

Buffer Memory

  Max. 10,000 data

Power Supply

Type

  6 pieces of AA-size Alkaline / Ni-MH battery
  AC adapter (Input 100 � 240V)

Operating hours

  Approx. 5 hours ( By Alkaline batteries )
  Approx. 8 hours ( By Ni-MH batteries )

Environmental Operation Condition

  Ambient temperature range: 10 to 35�C ( 50 to 95�F)

Dimensions

  4.7"(W) x 11"(H) x 5.1"(D)  (120 x 280 x 130mm)

Weight

  Approx. 3.3lbs (1.5kg) ( without batteries )

Standard Accessories

  AC adapter, Zero filter , Alkaline battery x 6, Operation manual

  Software (for Windows), PC Communication Cable, Carrying Case

Options

  Ni-MH battery(1.2V-2500mA) x 6, Charger x 2, Printer,
  Printer cable, Sampling Probe

Purchase 3800 Kanomax Condensation Particle Counter

  • SKU: 3800
