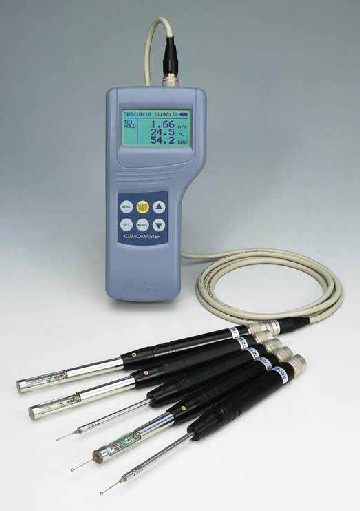

Climomaster�
Thermo-Anemometer from Kanomax
|
|
|
The world's most accurate
multi-function hot-wire thermo-anemometer in its class!
|
|
Choose
from among five interchangeable probes to meet your every measuring need.
|
|
|
|
|
|
product
sheet
|
|
Features
|
|
user
manual
|
|
|
|
|
|
Climomaster Thermo-Anemometer
|
- The world's most accurate handheld
hot-wire anemometer in its class. With +/-2% accuracy, there is no match!
- Robust design--just what you'd expect
from Kanomax.
- Detachable probes are interchangeable!
Keep several on hand.
- Automatic Flow Rate (CFM) calculation
function.
- RS232C terminal for data logging.
- Stores up to 1500 measurement data.
- Standard Kit includes: Climomaster
meter, probe, 6 ft cable, manual, AA batteries, carrying case.
- Optional differential pressure sensor
can be added to any model.
- Optional analog output (0-1 VDC) user
selectable for pressure or any probe function.
- Optional 28" telescopic extension,
straight or flex-neck.
- Optional NIST certificate on ALL
functions for one low price!
- One-year money-back guarantee.
Benefits
- Probe compatibility saves your downtime
and shipping cost.
- Detachable anemometer probe lets you to share the
main unit or the probe.
- Reports volume flow rate for up to
25 different user-programmable duct sizes.
- User-friendly software allows you to
access your data instantly.
- Store your data or download it to your
PC using the optional RS232C cable and software.
|
with optional
probes
|
|
|
|
Ventilation Testing
|
|
Laboratory Control
|
|
Clean Rooms
|
|
IAQ Testing
|
|
Industrial Hygene
|
|
Quality Control
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Climomaster�
Specifications
|
Model |
A531 |
A541 |
A542 |
A533 |
A543 |
| Standard
Probe |
A531-01 |
A541-01 |
A542-01 |
A533-01 |
A543-01 |
| Probe
Type |
Rod |
Rod |
Needle |
Spherical |
Spherical |
| Directionality |
mono |
mono |
omni |
omni |
omni |
| Air
velocity and temp |
yes |
yes |
yes |
yes |
yes |
| Relative
humidity |
yes |
no |
no |
yes |
no |
| Air
Velocity |
Range |
20
to 6,000fpm (0.10 to 30.0m/s) |
10
to 984fpm
(0.05 to 5.00m/s) |
| Accuracy |
+/-2%
of reading or +/-3fpm (+/-0.015m/s)
whichever is greater |
| Response
Time |
Approx.
1 sec.* |
Approx.
4 sec.* |
Approx.
7 sec.* |
| Resolution |
1
fpm (0.01m/s from 0 to 9.99m/s,
0.1m/s from 10.0 to 30.0m/s) |
1
fpm (0.01m/s) |
| Air
Temperature |
Range |
32.0
to 140.0F (0.0 to 60.0C) |
| Accuracy |
+/-
1F (+/-0.5C) |
| Response
Time |
Approx.
30 sec.* |
| Resolution |
0.1F
(0.1C) |
| Relative
Humidity |
Range |
2.0
to 98.0%RH |
-- |
2.0
to 98.0%RH |
-- |
| Accuracy |
+/-2.0%RH
from 2 to 80%RH
+/-3%RH from 80 to 98%RH |
-- |
+/-2.0%RH
from 2 to 80%RH
+/-3%RH from 80 to 98%RH |
-- |
| Response
Time |
Approx.
15sec. |
-- |
Approx.
15sec. |
-- |
| Resolution |
0.1%RH |
-- |
0.1%RH |
-- |
Differential
Pressure
(Optional) |
Range |
-5.00
to +5.00kPa |
| Accuracy |
+/-
(3% of reading +0.01)kPa |
| Response
Time |
Approx.
1 sec. |
| Resolution |
0.01kPa |
| Output |
Digital |
RS-232c
(Baud Rate 4800, 9600, 19200 and 39400bps) |
| Analog |
DC0-1V
(Select from Air Velocity, Air Temperature, Relative Humidity and
Pressure) |
| Power
Supply |
6
x 1.5V AA Batteries, AC Adapter (Optional): AC100-240V |
| Battery
Life |
Approx.
10hrs. Continuous at 984fpm (5m/s), 68F (20C) with alkaline
batteries |
| Operating
Environment |
Main
Unit |
41
to 104F (5 to 40C) |
| Probe |
32
to 140F (0 to 60C) |
| Storing
Environment |
41-104F
(5 to 40C) |
| Weight |
Approx.
0.9lbs (400g) |
| Standard
Kit |
Carrying
Case, Operation Manual, AA Batteries, Probe Cable |
|
Optional Accessories
|
Spare
Probe, Analog Output, Pressure Sensor, Extension Rod, Printer,
Printer Cable, Communication Cable, Software (for Windows), AC
Adapter: AC100-240V 50/60Hz |
*
at 196fpm (1m/s), 90% response time
|
|
Climomaster�
Order
Form
|
|
A531
|
Climomaster Anemometer Kit w/ A531 probe
|
|
|
|
A541
|
Climomaster Anemometer Kit w/ A541 probe
|
|
|
|
A542
|
Climomaster Anemometer Kit w/ A542 probe
|
|
|
|
A533
|
Climomaster Anemometer Kit w/ A533 probe
|
|
|
|
A543
|
Climomaster Anemometer Kit w/ A543 probe
|
|
|
|
6531-04
|
Telescopic Extension Rod, 28",
flex-neck
|
|
|
|
6531-05
|
Telescopic Extension Rod, 28",
straight
|
|
|
|
6531-06
|
Spare probe cable, 6 ft (2 m)
|
|
|
|
6531-07
|
Pressure sensor and tubing
|
|
|
|
A531-01
|
Spare probe, velocity, temp, humidity
|
|
|
|
A541-01
|
Spare probe, velocity, temp
|
|
|
|
A542-01
|
Spare probe, velocity, temp
|
|
|
|
A533-01
|
Spare probe, velocity, temp, humidity
|
|
|
|
A543-01
|
Spare probe, velocity, temp
|
|
|
|
6000-05
|
AC Adaptor (Input AC100-240 VAC)
|
|
|
|
6531-08
|
Analog output module (0-1VDC)
|
|
|
|
S600-00
|
Data processing software, Windows
|
|
|
|
6000-02
|
Communication cable to PC (RS232C)
|
|
|
|
DPU-H245
|
Portable printer
|
|
|
|
6000-03
|
Printer cable
|
|
|
|
TP-202L
|
Rolled printer paper, quantity 10
|
|
|
|
A4NIST
|
NIST certificate, air velocity only
|
|
|
|
A5NIST
|
NIST certificate, all functions
|
|
|
|
|
|
|
|
