Anemomaster®
A031 Multi-Function Anemometer
|
|
|
from Kanomax
|
|
|
|
|
Measure air velocity, temperature, volume flow and differential pressure with a single meter
|
|
|
|

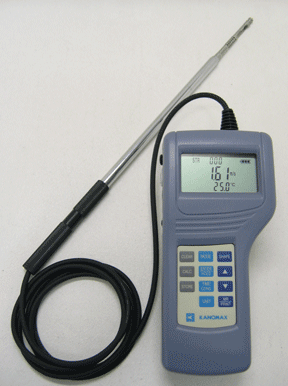

The Kanomax model A031 Digital Anemometer measures Air Velocity, Volumetric Flow Rate and Air Temperature. Optional
differential pressure measurement capability is also available.
|
|
Probes are available in Straight and Articulated versions and include a Platinum Sensor Element for long life and high accuracy.
Up to 800 measurements can be logged for later on-board review, printing or downloading.
|
|
The A031 is well suited for HVAC Testing, IAQ Investigation, Face Velocity Measurements,
Clean room Monitoring, and Industrial
|
|
Hygiene Applications.
|
A031 Multi-Function Anemometer
|
|
Features include simultaneous display of Velocity and Temperature, RS232C standard (Analog 0-3v optional), Switchable English/Metric Display, Telescoping Probe for hard-to reach areas and in-duct measurements, and a
certified Low Velocity of 20 fpm.
|
|
|
A031 Product Sheet
|
|
A031
User Manual
|
|
|
|
|
|
|
HVAC Testing
|
|
Features of the A031 Anemometer
|
|
Laboratory Control
|
|
|
|
Clean Rooms
|
- Velocity range: 20-6000 ft/min (0.10 to 30.0 m/s)
- Single probe measures air velocity and temperature simultaneously.
- Built-in memory enables you to store measured data.
- Highly visible LCD capable of displaying air velocity and temperature simultaneously.
- RS232 (standard) and Analog (optional) outputs.
- Kit includes A031 meter, AC adaptor, RS232 com cable, Software (Windows®), six AA batteries, user manual and carrying case
Benefits of the A031 Anemometer
- Velocity, temp and pressure data can be reviewed on-screen, printed or downloaded to a computer.
- Optional articulating probe for various applications.
- Etched length marks on the telescopic probe make duct traverse measurements easier.
- Telescopic probe for hard-to-reach areas and in-duct measurements.
- Built in RS232C transmission port allows connection for external processing of velocity, temp, and pressure data.
|
IAQ Testing
|
|
Industrial Hygiene
|
|
Quality Control
|
|
Filter Face Velocity
|
|
|
|
|
Optional articulating probe, models A034 and A044
|
|
Anemomaster®
A031Specifications
| Parameter |
English |
Metric |
| Air Velocity |
Range |
20-6,000fpm |
0.10 to 30.0 m/s |
| Accuracy |
+/- 3% of reading or +/-3 fpm whichever is greater |
+/- 3% of reading or +/-0.015 m/s whichever is greater |
| Resolution |
1 fpm |
0.01m/s: from 0 to 9.99m/s
0.1m/s: from 10.0 to 30.3m/s |
Volumetric
Flow rate |
Range |
At 20 fpm: 9031 ft3/min
At 6000 fpm: 2,709,360 ft3/min |
At 0.1m/s: 2341m3/s
At 30m/s: 702.270m3/s |
Air
Temperature |
Range |
-4 to 140.0F |
-20 to 60.0 C |
| Accuracy |
+/- 1F |
+/- 0.3C |
| Resolution |
0.1F |
0.1C |
Differential
Pressure
(Optional) |
Range |
-5.00 to + 5.00kPa |
| Accuracy |
+/-(3% of reading + 0.01)kPa |
| Resolution |
0.01kPa |
| Output |
Digital |
RS232C (Baud rate 4800, 9600, 19200 and 38400 bps) transmits air velocity, volumetric flow, temperature and pressure data |
| Analog(Optional) |
DC 0-3V (available only for air velocity) |
| Power Supply |
6 x 1.5V AA batteries (AC adaptor: AC90-240V/Optional) |
| Data Storage |
Timed and multipoint average calculation
Total of 800 data for Velocity and Temperature
Volumetric Flowrate and Temperature / Pressure |
| Probe |
Straight Probe
Model A031/A041 |
Length: 39.4in.(100 cm) - Telescopic
Diamter of Tip: 0.236in. (6.0mm)
Diameter of Base: 0.472in.(12.0mm) |
Articulating Probe
Model A034/A044 |
Length: 39.4in.(100 cm) - Telescopic
Diameter of Tip: 0.236in. (6.0mm)
Diameter of Base: 0.472in.(12.0mm)
Articulating section length: 3.543in.(90.0mm) |
| Accessories |
Carrying case, Operation manual, 6 x AA Batteries, RS-232C cable, Software for Windows, AC adaptor |
| Options |
Analog output, Printer, AC adaptor (for Printer) |
|
|
Anamomaster®
A031 Order Form
|
|
A031
|
Anemomaster Kit* w/ 39"
telescoping probe
|
|
|
|
A034
|
Anemomaster Kit* w/ 39" articulating probe
|
|
|
|
A041
|
Anemomaster Kit* w/ 39" tele. probe & pressure module
|
|
|
|
A044
|
Anemomaster Kit* w/ 39" articulating probe &
press. module
|
|
|
|
6531-08
|
Analog output module (0-3v) for Air Velocity
|
|
|
|
DPU-H245
|
Portable Printer (printer cable not
included)
|
|
|
|
TP-202L
|
Printer Paper, 10 rolls
|
|
|
|
6000-03
|
Printer Cable
|
|
|
| A4NIST
|
NIST certificate, air velocity only
|
|
|
| A5NIST
|
NIST certificate, all functions
|
|
|
|
|
*Kit includes A031 meter, AC adaptor, RS232 PC com cable, Software (Windows®), six AA batteries, user manual and carrying case. One year warranty.
|
|
|
|
