Anemomaster®

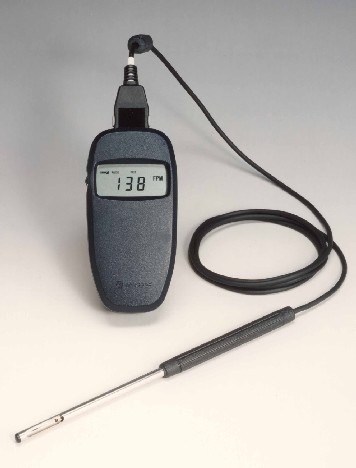

A004 Hotwire Thermo-Anemometer
|
 |
|
from Kanomax
|
|
|
|
|
Measure air velocity and temperature with this palm-sized hot-wire digital anemometer
|
|
|
|
|
|
|
|
|
|
A004 Thermo-Anemometer
|
|
|
A004 Product Sheet
|
|
A004
User Manual
|
|
The Kanomax
model A0004 Digital Anemometer measures Air Velocity and Air
Temperature. An optional Differential
Pressure measurement is also available. The detachable
probe feature lets you switch probes in the field without the need
for recalibration. The optional telescoping probe helps
you extend your reach. The Kanomax A004 is well suited for
HVAC Testing, IAQ Investigation, Face Velocity Measurements,
Clean room Monitoring, and Industrial Hygiene Applications.
|
|
|
|
Features of A004 Anemometer
|
|
|
- Range: 20 to 3940 Ft/min (0.10 to 20.0 m/s)
- Probe Compatibility feature enables you to switch probes in the field
- Optional telescoping rod
extends your reach to 36 inches
- Compact, light-weight, and affordable
- High accuracy; +/-3% of reading or +/-3 fpm
- Simple operation
- Built-in temperature compensation circuit
- English/metric switchable
- Includes meter, AA batteries and user manual
- One year warranty
Benefits of A004
hot wire anemometer
- Probe Compatibility reduces down time and shipping cost.
- Palm-size and feather-weight body
- Soft keys and large display make it easy to use and read.
- Detachable probe enables you to share meters or probes.
- Common measuring ranges covered from 0.1 to 20.0m/s (20 to 3,940 fpm) for
velocity and from 0 to 50 C (32 to 122F) for temperature.
- Temperature compensation maintains accuracy.
|
|
| Anemomaster®
A004
Specifications |
| Air Velocity |
Range |
20 to 3,940 fpm (0.10 to 20.0m/s) |
| Accuracy |
+/-3% of reading or +/-3 fpm (+/-0.015m/s) whichever is greater |
| Response Time |
Less than 1 second at 196 fpm (1m/sec), 90% response |
| Resolution |
0 to 9.99 m/sec: 0.01 m/sec (minimum)
10.0 to 20.0 m/sec: 0.1 m/sec |
| Air Temperature |
Range |
32 - 122 F (0-50
C) |
| Accuracy |
+/-0.2 F (1 C) |
| Response Time |
Less than 30
seconds at 196 fpm (1 m/sec), 90% response |
| Resolution |
1 F (0.1 C) |
| Power Supply |
4 x 1.5V AA cells Mn battery, alkaline battery, or Ni-Cd battery
(An appropriate charger to be used for the Ni-Cd battery) |
| Battery Life |
Approx. 4 hrs continuous at air velocity 196 fpm (1 m/s) with Mn batteries |
| Operating Environment |
Main Unit |
41 to 104F (5 to
40C) |
| Probe |
32 to 122F (0 to
50C) |
| Storing Environment |
14-122 F (-10 to
50C) |
| Dimensions |
Probe: 0.24" or 0.40"(6 or 10mm) diameter x 7.9"(200mm) length.
Probe cable: 0.13"(3.3mm) diameter x 59"(1,500mm)length.
Main body: 2.4"(60mm) x 4.7"(120mm) x 1.2"(30mm) |
| Weight |
Approx. 0.4lbs (180g) including batteries |
| Standard Kit |
Operation Manual, AA Batteries |
| Optional Accessories |
Spare Probe, Telescoping extension rod 6.5-36.8" |
|
| . |
