Extech®

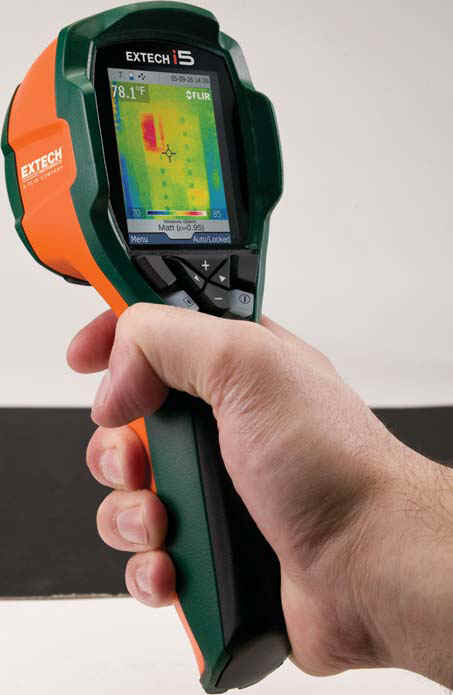

I5 Thermal Imaging Camera
|
Applications:
-
Detect hidden problems, make quick damage assessments
-
Check for overheating of electrical panels and transformers
-
Avoid electrical failures
-
Identify faults in heating and cooling systems
-
Find problems with motors, fans and bearings
-
Generate reports, analyze and document your findings with the easy-to-use
software
|
| Compact IR Camera with focus free viewing, and 5000 image miniSD™ card storage. Affordable troubleshooting tool. Only 12 oz!
|
|
|
|
 Product
Sheet
|
|
Virtual
Demo
|
|
Features of the Extech I5 (IRC40) Thermal Imager
|
- Easy-to-use troubleshooting tool, pocket sized and fully automatic
- 80 x 80 pixels image resolution
- High accuracy of 2% helps you find problems faster and easier
- Large 2.8" color LCD
- Double molded rugged design with easy grip handle construction meets IP43 dust/splashproof standards
- MiniSD™ card stores up to 5000 Radiometric JPEG format images.
- Complete with 512MB miniSD™ Card, rechargeable battery, 100-260V AC adaptor/charger with int. plugs, QuickReport™ software, USB cable and hand strap.
|
|
Specifications
of the Extech I5 IR Camera
|
|
|
|
Imaging Performance / Image Presentation
-
Field of view/min focus distance: 17° X 17°/0.6m (2 ft.)
-
Focus: Focus free
-
Thermal sensitivity (N.E.T.D) <0.1°C at 25°C
-
Detector Type Focal plane array (FPA): uncooled microbolometer; 80 X 80 pixels
-
Spectral range: 7.5 to 13μm
-
Display: 2.8" color LCD
-
Image Controls: Palettes (Iron, Rainbow, and Black/White)
-
Set-up controls: Date/time, °C/°F, 21 languages
-
Measurement modes: Spot (with correction for emissivity and reflected temperature)
Power Source / Environmental Specs
-
Battery Type: Li-lon
-
Battery operating time: >4 hours, Display shows battery status
-
Charging system: In camera, AC adapter; 3 hours to 90% capacity
-
AC operation: AC adaptor 90-260VAC, 50/60Hz
-
Adaptor Voltage: 5 VDC output to camera
-
Operating temperature range: 32°F to 122°F (0°C to 50°C)
-
Storage temperature range: -40°F to 158°F (-40°C to 70°C)
-
Humidity Operating and storage: 20% to 80%, non-condensing, IEC 359
-
Shock: 25G,IEC 68-2-29
-
Vibration: 2G,IEC 68-2-6
-
Dimensions/Weight: 8.8x3.1x3.3" (223x79x83mm)/<12oz. (340g), including battery
|
|
