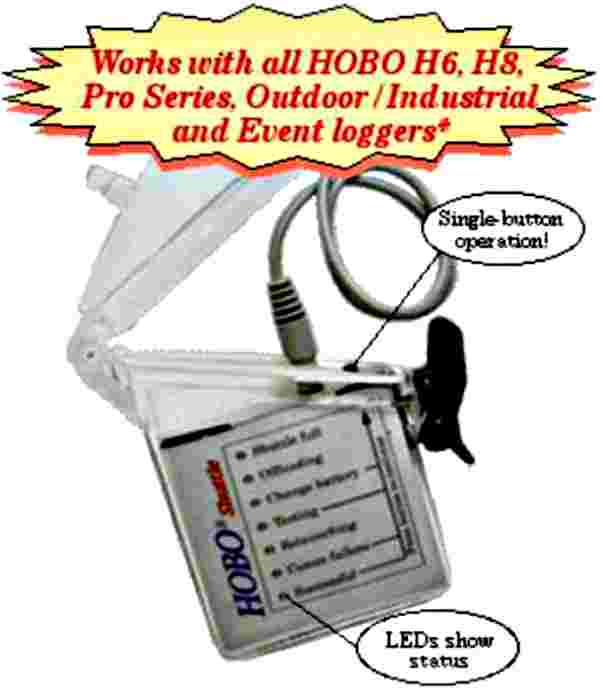

As an optional accessory, the pocket-sized HOBO Data Shuttle makes it easy to offload and relaunch loggers and bring data back to your PC.  The Shuttle offers the convenience of offloading data from loggers and testing it and restarting loggers right in the field.  No need to bring a computer to the field or to bring loggers back to your office PC.

How it Works

xxxx1. Synchronizing your PC and the Hobo Shuttle
xxxxxxUse Boxcar Pro software on your PC to launch or readout the HOBO Shuttle.  This will reset xxxxxxthe Shuttle's clock to match the host computer's clock. The Shuttle's clock is then used to xxxxxxreset the loggers' clocks when they are relaunched from the Shuttle.

xxxx2. Offloading and relaunching and loggers
xxxxxxConnect the logger to the HOBO Shuttle and press the button. The Shuttle will offload the xxxxxxdata to its nonvolatile EEPROM memory and then check the logger's battery. If the battery is xxxxxx good, the Shuttle relaunches the logger. If the battery is weak, the Shuttle will prompt you to xxxxxxreplace the battery before relaunching. In addition, the HOBO Shuttle tests the proper xxxxxxoperation of the HOBO H6 family and HOBO Event loggers before they are relaunched.

xxxx3. Downloading data to your computer
xxxxxxUse BoxCar Pro to download Shuttle-stored logger files to your PC.  Now you can view the xxxxxxdata in tavle or graph form, or export your data to other applications.

 Features and Specifications

• 468K capacity is enough for 51 full 8K loggers or 13 full 32K loggers or 7 full 64K loggers
• Provides triggered start on location
• Verifies operation of HOBO H6 Family and HOBO Event data loggers
• Synchronizes HOBO data logger's clock with the PC's clock
• Resynchronized relaunch: sets the HOBO's sample times to be synchronized with the prior launch's sample times
• Uploads the same data to a PC as if the data were read out directly from the logger
• User-replaceable batteries last 1 year
• Battery indication: HOBO Shuttle's battery status displayed in percent by BoxCar Pro software
• Nonvolatile EEPROM memory retains data even if battery fails
• One-foot connector cable fits inside case
• Data offload time from logger: 90 seconds typical from 8K logger, about 5 min from 32K logger and about 1 min from 64K HOBO Pro logger
• Data readout time to PC: 2 minutes typical for full shuttle
• Operating temperature range: -4°F to +158°F (-20°C to +70°C)
• Operating humidity range when case is open: 0 to 95% relative humidity, non-condensing
• Time accuracy: ±1 minute per week at +68°F (20°C). The HOBO Shuttle's clock is synchronized to the computer clock when the HOBO Shuttle is read out or launched
• Case: weatherproof when closed; made from clear styrene
• Dimensions: 3.5 x 4.3 x 0.8" (108 x 89 x 19 mm), adjustable cord attached
• Weight: approx. 2.9 oz. (83 grams)

*The HOBO Shuttle does not work with older versions of the HOBO loggers (i.e. 2K HOBO Temp H01-001-01, HTI, HTEA, HRH, HLI, HPA, HV) or any StowAway loggers.
