BoxCar^®Pro 4.0 for Windows

BoxCar Pro 4.0 is a powerful enhanced software support package for launching HOBO data loggers, downloading data to your PC, and for graphing, data analysis, data export and managing multiple loggers.  BoxCar Pro 4.0 supports all currently available HOBO loggers.

Easy Logger Setup   see sample screen

• Select from predefined sampling intervals (0.5 sec to 9 hrs) or program your own custom intervals
• Set start time and memory modes (e.g., stop when full, wrap-around when full)
• Verify logger operation before launching
• Synchronizes logger and data shuttle clocks to computer clock
• Checks battery status (for HOBO H8, HOBO Pro, HOBO H6, HOBO Event and HOBO Shuttle)

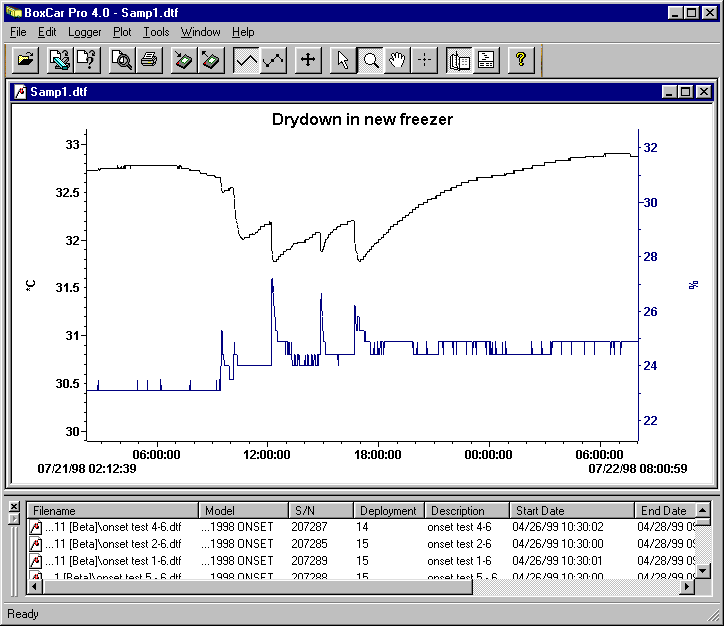

Graphing    see sample screen

Powerful graphing capabilities allow you to compare multiple parameters on one graph, including data from multiple loggers or successive deployments. Then use the zoom and axis-control tools to focus in on the data of interest.

  • Add new data series from stored files or drag-and-drop from one plot onto another
  • Multiple value axis on one graph, such as temperature and RH
  • View data from successive deployments on one graph to see long-term trends
  • Overlay data from different deployments, to compare month-to-month, or before-and-after
  • Focus on data of interest with powerful zoom and drag tools
  • Set axis ranges
  • Use cursor to display specific plot values
  • Display series data and details such as launch parameters and series statistics
  • Add limit lines to the graph
  • Copy and paste graphs into other Windows programs
  • Control axis, series and legend properties

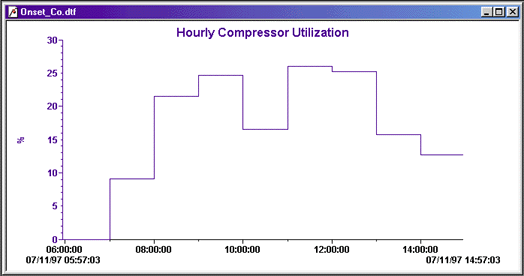

Analysis Functions    see sample screen

The following analysis functions can be used to extract key information from logged data. These functions actually create new data series, which can be graphed or exported. These functions filter data over user-specified intervals that can be in seconds, minutes, hours or days.

  • Min, max and average values per interval

On/off and State logger data:
  • Run time and off time (closed time and open time) in seconds
  • Percent on and percent off (percent closed and percent open)
  • Number of ON and OFF events (number of opens and closes)

Event logger data:
  • Rainfall per time interval
  • Number of events

Export Data to other Programs

Control bar tool for Microsoft Excel export (.TXT format)
  • Lotus 1-2-3 and custom export
  • International data format options
  • Batch export utility

Other Features

Print graphs and series details
   • Print preview
   • Multiple logger launch
   •  Long file names (up to 255 characters)
   • International data format options
   • Thumbnail view for showing many plots on screen at once

BoxCar^® Pro 4.0 System Requirements:
Minimum system requirement is 486/66Mhz with at least 16M of RAM running Windows 95/98/NT4 or later with 16-bit color. A Pentium 90 or higher with 24M of RAM is recommended. The system must have at least one available serial COM port and a CD-ROM Drive.  BoxCar Pro 4.0 is designed for single users, and has not been tested, and therefore not warranted to run in a network environment.



USB to Serial adapters for PCs

Keyspan High Speed USB Serial Adapter

The KeySpan high-speed serial adapter (P/N USA-19QW), a single USB to Serial adapter, is compatible with Onset loggers and BoxCar Pro software and HandCar software for Palm handhelds. This adapter can be purchased at most computer dealers and peripheral resellers.  G3 and G4 Power Mac users are not able to run BoxCar or BoxCar Pro due to the lack of a USB to serial cable adapter that is compatible with Virtual PC.


Laptop Users:

Many laptops and newer desktop computers are equipped with a power-saving function that can interfere with successful logger launchings.  If your loggers log only one or two data points after launch, your computer probably has a power-saving function that is signaling the logger to dshut down immediately after launch.  A software patch has been developed to deal with this problem.  Download and install the BoxCar Pro 4.2.10.1 software patch to assure successful launch of your loggers.
